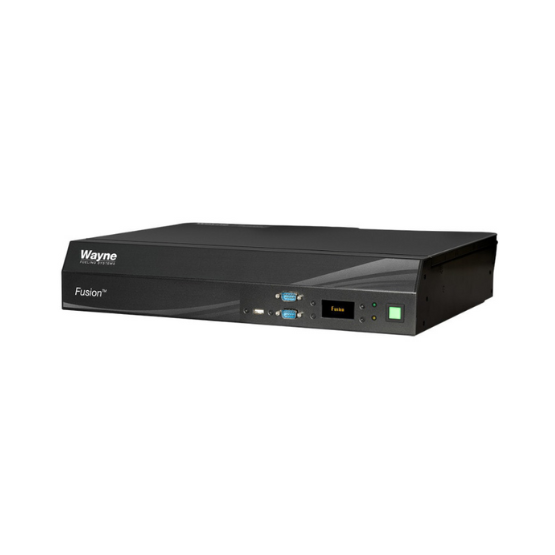

Wayne Fusion Automation Server

The Fusion Automation Server connects your forecourt and convenience store devices together with cloud-based services, so you can run your retail fueling business more efficiently and effectively.

The Fusion is available in 3 models, each configured to address the needs of various site environments.

SKU: N/A Category:
Quantity
View List
Loading...

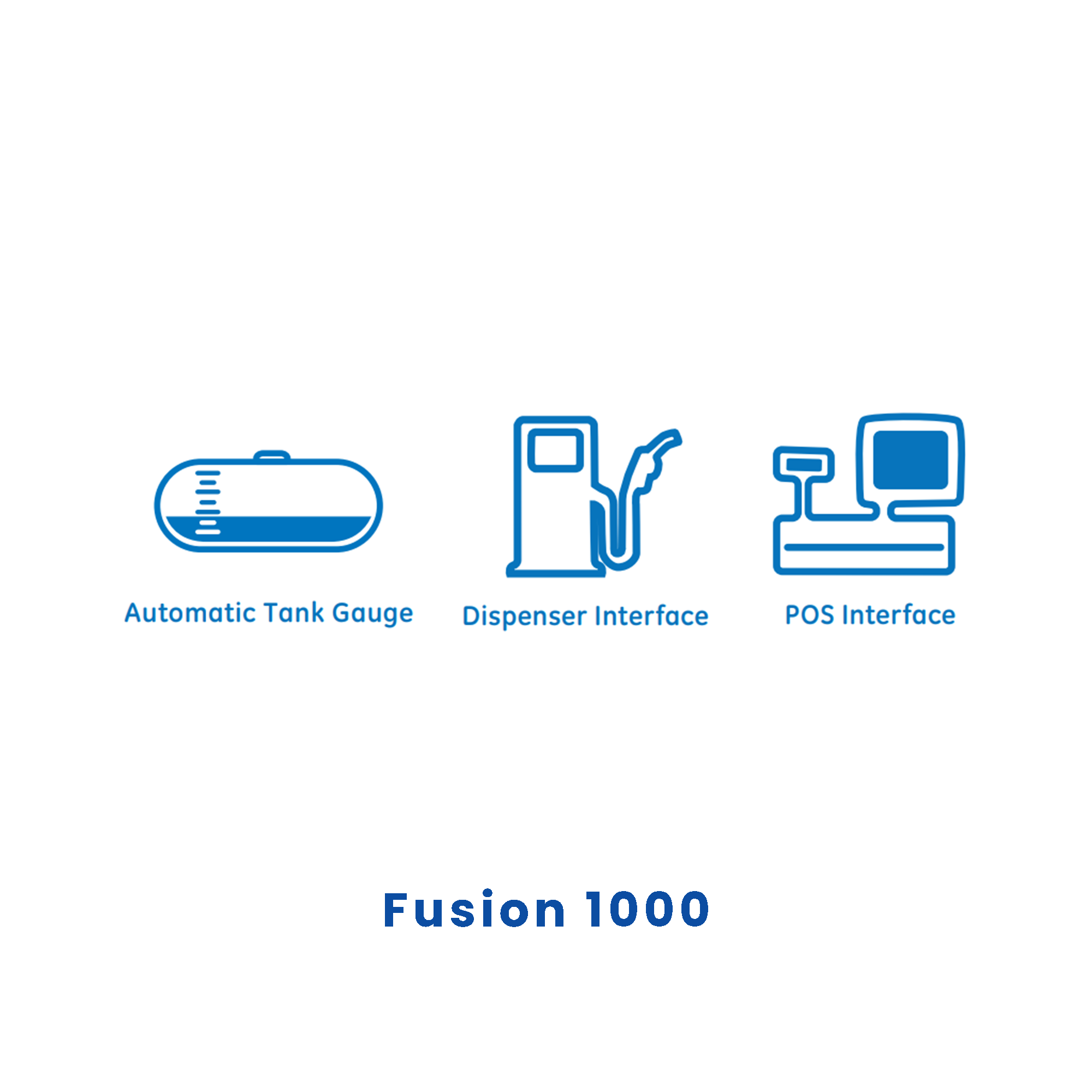

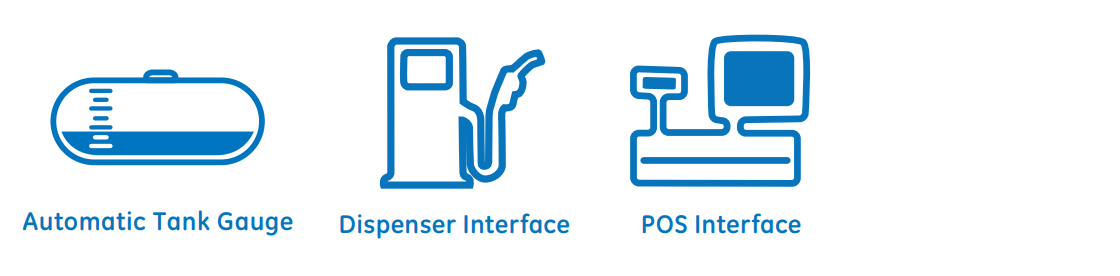

Fusion 1000
If you have an existing POS system, the Fusion 1000 forecourt controller is an easy way to connect with the forecourt today, with expansion capability for future upgrades. This off-the-shelf box easily connects your POS, ERP, and your dispensers, regardless of the manufacturer.

Highlight:

  • Easily connect your POS and ERP to your forecourt devices.
  • Consolidates boxes — minimizes potential points of failure.
  • Easy to upgrade to the Fusion 3000 forecourt system — add capability without adding boxes.

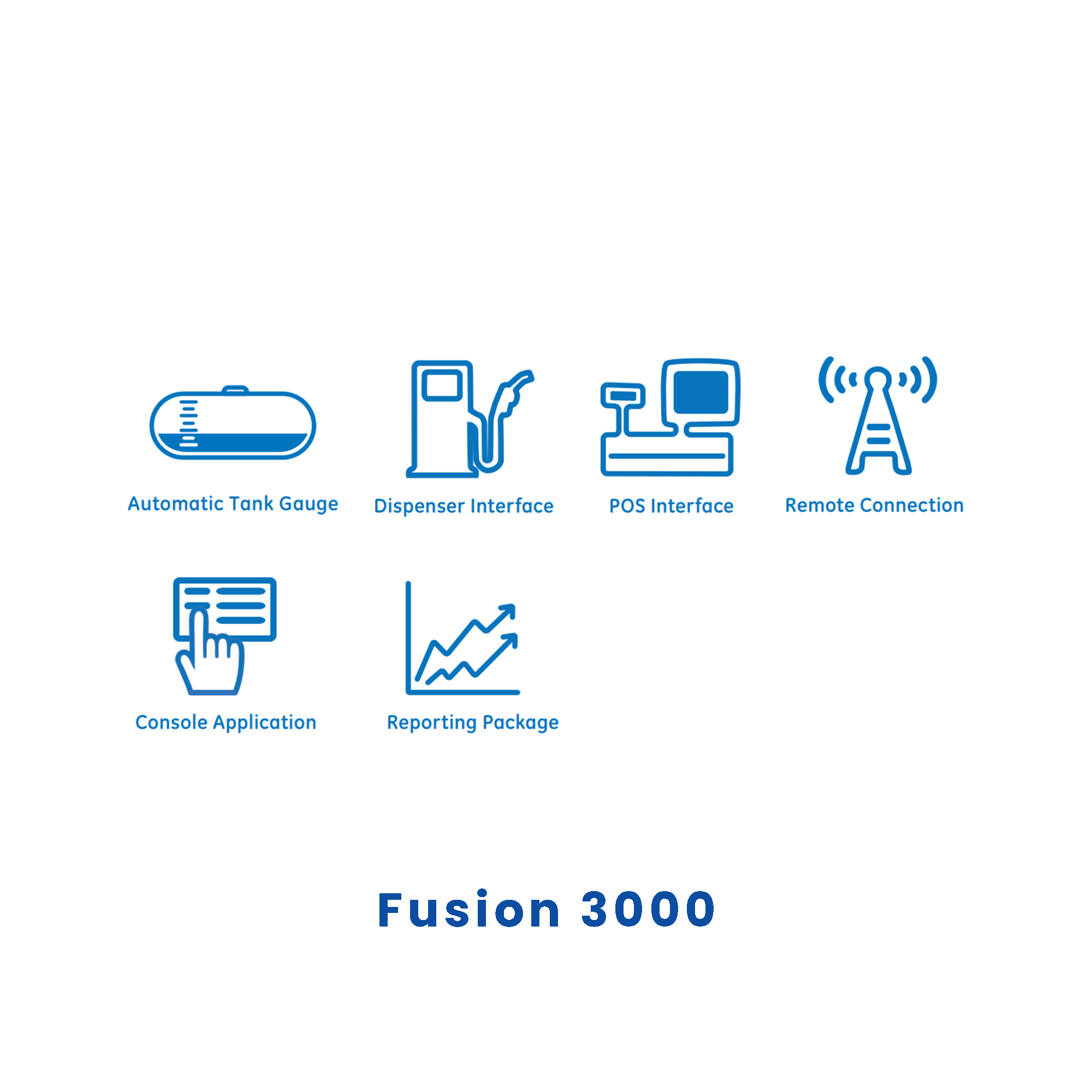

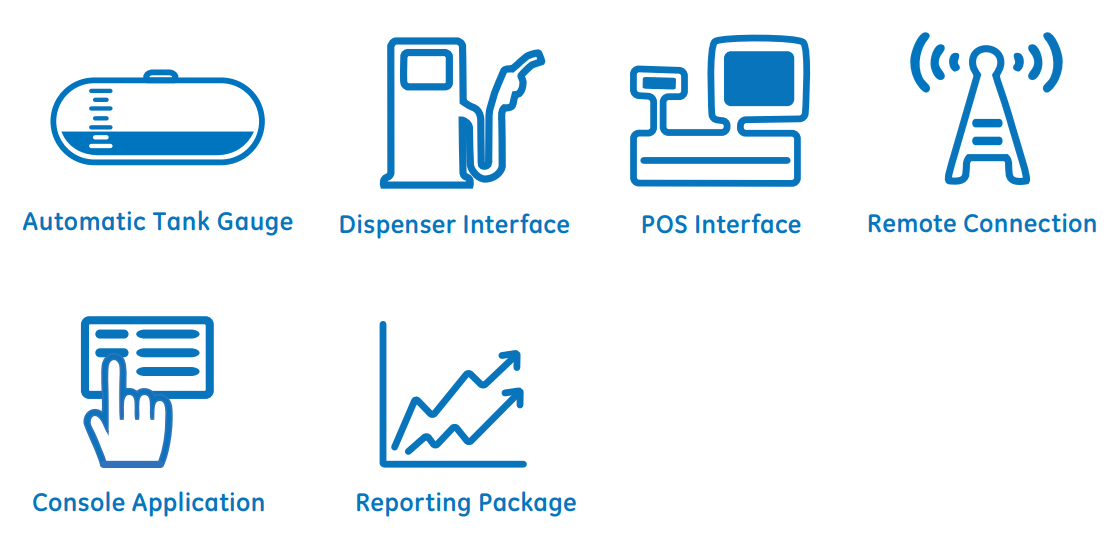

Fusion 3000
With on-site remote connectivity, and comprehensive web-reporting features, the Fusion 3000 forecourt controller gives you better control and visibility over your fueling station. If you need automation without electronic payment or require POS redundancy, the Fusion 3000 forecourt controller is the best choice for you.

Highlight:

  • Console application with easy-to-use interface allows enhanced control of the dispenser, including pre-payment and post-payment transactions.
  • Enables cash transactions and payment reconciliation.
  • In-depth web reporting gives you site data at your fingertips — in real time.
  • Web-enabled user interface lets you connect from remote locations and run any report.
  • Provides back-up console application for site redundancy in case of POS failure.

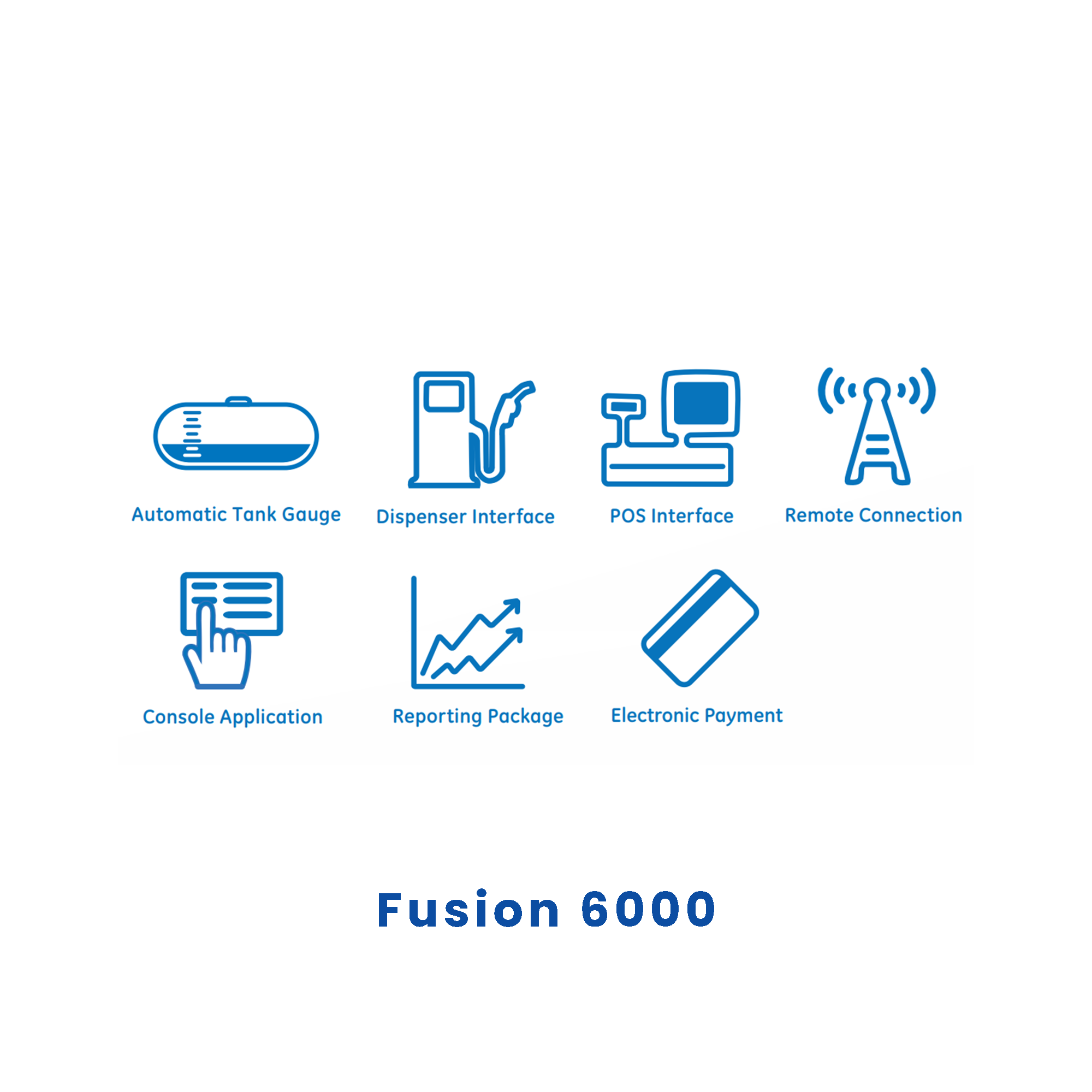

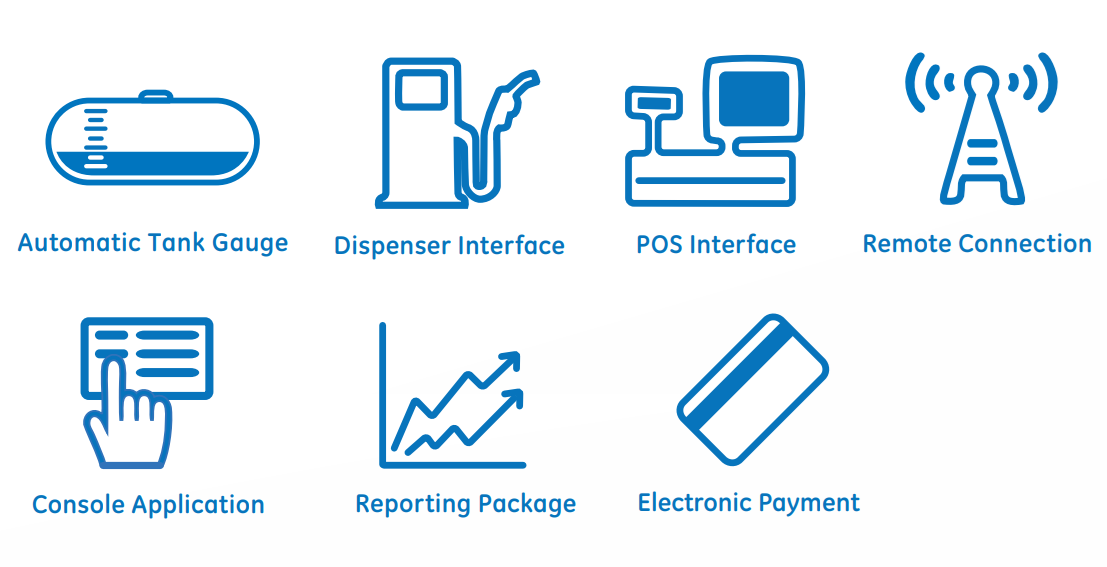

Fusion 6000
Want full site automation with integration to third-party applications, plus electronic payment, both indoors and outdoors? Then you want Fusion 6000 forecourt controller. It includes everything in the Fusion 3000 forecourt controller, plus it helps control aspects of electronic payments. In fact, the Fusion 6000 forecourt controller even processes credit card transactions separately from the POS system, taking much of the complexity and cost out of PCI compliance.

Highlight:

  • Enables electronic payment transactions without going through your POS system.
  • Enables payment and loyalty programs from a single system.
  • Easily accommodates third-party software applications, no need for extra boxes.

Model

Fusion 1000, Fusion 3000, Fusion 6000

Technical Specification

HARDWARE FEATURE IMPACT
Processor Dual-Core 1.86Hz Processor 55% faster for increased application and transaction speed
Memory 4GB Max Double memory capacity for increased multitasking of forecourt devices
GRIBS 6 Max Up to 96 fueling points for expanded interface capabilities
Temperature -20 to 70°C (-4 to 158°F) Meets extended cold and heat requirements for placement in a variety of locations globally
LAN 2 Ethernet Segment LAN for secure payment and easier PCI compliance
Power Button Front-Mounted Easy access for convenient system operation
Serial I/O Standard 55 serial / 1 485 (2 front mount / 5 USB Eliminates need and cost of an additional I/O panel
Keyboard, Video, and Mouse I/O Standard KVM Eliminates need and const of an additional I/O panel
Short term Power Loss Prevention Super Capacitor Quicker charge times. Longer hold-up times with no shelf life for better system security
Intrusion Detection Intrusion Switch Unauthorized access alerts for increased system security
Optional Integrated Wireless (Coming Soon) WIFI / 3G Wireless connection for more convenience
Dual Display Display Port Allows for cashier and customer-facing displays to be connected simultaneously for efficiency
Diagnostic and Power Reset GPIO Port Allows for board-level diagnostic and remote hard boot for easier serviceability
