S-50 230 VAC + Base No.4

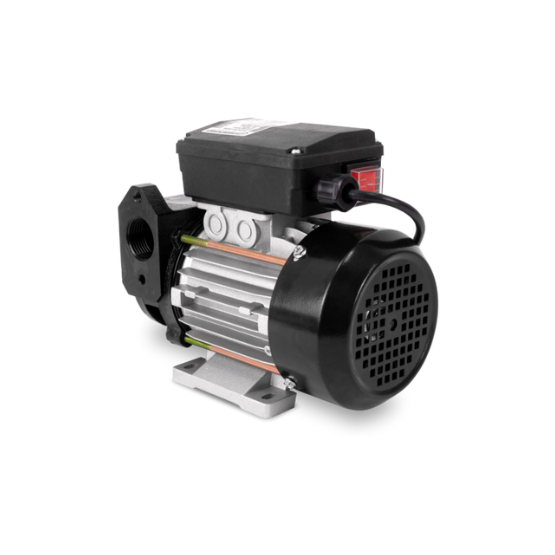

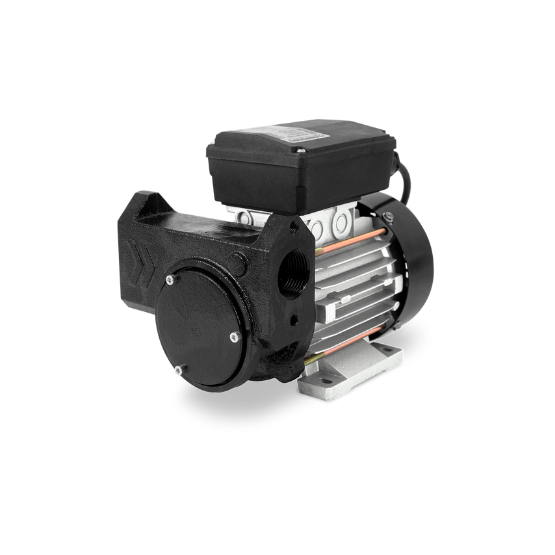

IRON-50 230 VAC pump

Technical Data

Self-suction – self-priming. Eccentric of self-adjusting blades
With recirculation bypass
Suction: 2.7m , Delivery: 30m
Priming pipe suction: 5m
Free flow: 50 l/min
Consumption: 1.2-2A
Motor: 0.25 kW 230 VAC self-ventilated 50/60 Hz single-phase with thermal protector
S1 Continuous duty
IP-55 Protection
3,000 rpm
Connection through F1″ (BSP) threads and flanges
It has built in a cleaning steel filter of 350 µm (micron)
ON/OFF luminous switch with IP-55 protection
3m electric cable with homologated plug
Anti-rust treatment

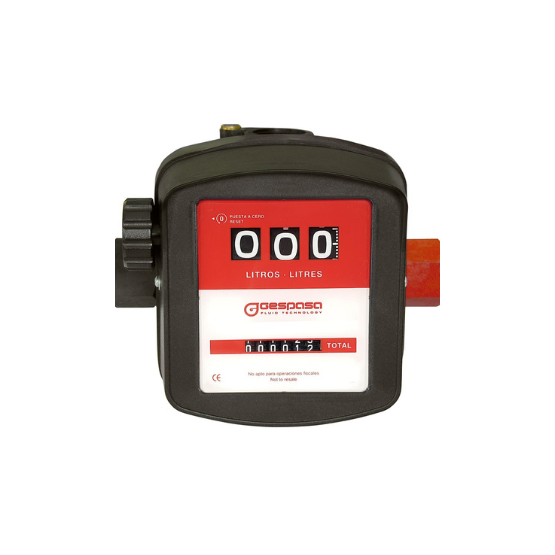

MG-80 Mechanical

Technical Data:

Aluminium body
Made of aluminum and high quality plastic materials. Its measuring chamber is fireproof of oscillant disc and it allows the transfer of any type of hydrocarbon liquids (please, consult other liquids).
Flow: 15-90 l/min
Accuracy: ±1 %
Partial indicator of 3 digits and totalizer of 6 digits
Maximum operation pressure: 5 bar
Resistance pressure: 15 bar
Ambient temperature: -10 ºC / +60 ºC
ATEX IIG Category
Protection mode: own supply: Ex h IIB T5 Gb
Polyamide + Fibreglass housing
Inlet/outlet Connections: 1″ GAS (BSP)
Inlet connection through threads or flanges
For private use, not suitable for fiscal operations

Who is GESPASA?

Renowned for its quality, reliability, and innovation, GESPASA stands as a leading provider of transfer, filtering, measuring, and control systems for automotive fluids, fuel, grease, and lubricants. Originating in Spain in 1974, the company has expanded its reach, now catering to an extensive array of industries encompassing agriculture, transportation, construction, mining, and more. Its product range includes fuel transfer pumps, flow meters, fuel filters, nozzles, and accessories designed to efficiently handle the transfer and management of fuels, oils, and other liquids.
