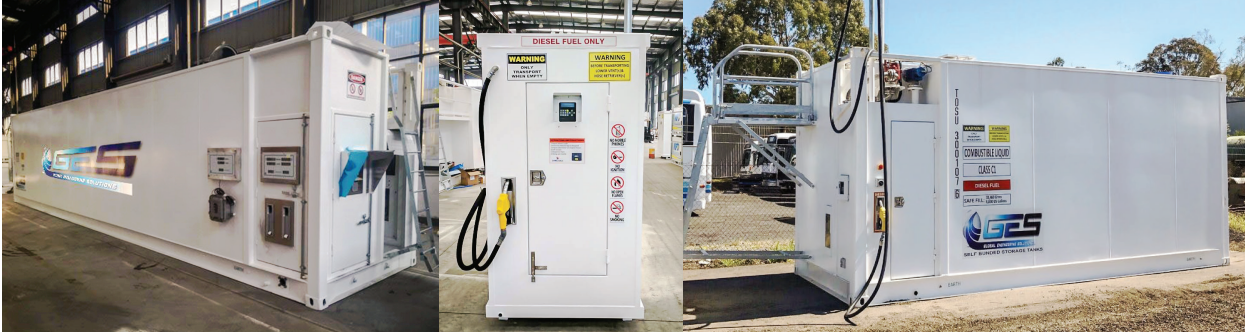

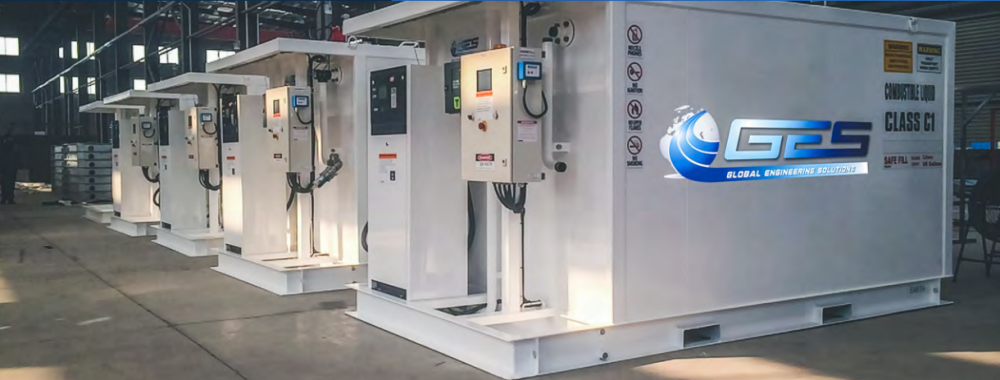

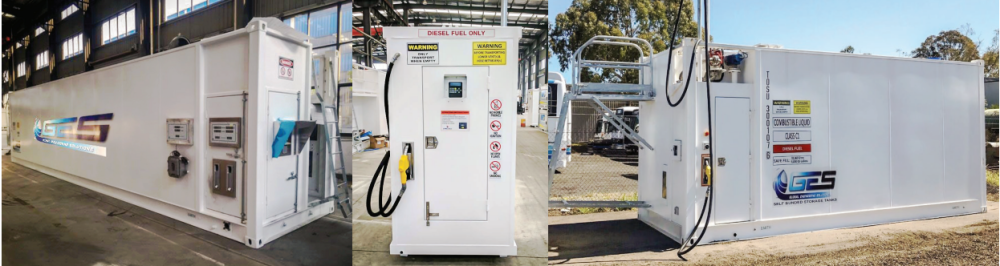

Portable Fueling Station (PFS Series)

Features:

Capacity and Premium Quality

• 5,000 to 90,000 Litres Safe Fill Package
• Large Capacity for up to 2,000 USERS
• 10 Year Tank Structural Warranty 2x6mm Walls

Easy Customer Reconciliation

• User Identification and Vehicle Identification
• Odometer and Engine Hours
• Time of Filling and Fuel Quantity

Online Tank Monitoring

• GES control ATG remote tank level access gauge via smartphone or web
• Low-level safety pump interlock
• Local Display (1-year free subscription)

Flow Rate

• PUMP – Single 1.5 HP submersible turbines ensure the product is always delivered to the dispenser via Pressure vs Suction so priming lines of an empty tank are not required
• DISPENSER – Comes with a fitted filter to prevent Fuel Containment
• GES Dispenser with High or Low Flow Switch
• 10 Meters Retractable Hi Mast, 1” PR Hose and Auto Nozzle

Fuel Management System

• Tecalemit FMS 2000 user for the driver, vehicle management and reporting data
• German designed and manufactured Fuel Management Systems for each tank
• European developed technology with USB, 3G, and web cloud base options

Safety Features

• “GES Innovative 2” 600 l/min. overfill valve (For PFS, 5, 6, 13, 20) and 3” 1600 l/min overfill valve (For PFS 38, 70, 90)” mechanical overfill protection allowing fuel company to deliver at 600 / 1600 litres per minute up to the safe fill level of the tank saving time and money on Fuel company deliveries
• Tank supplied as standard with 15amp single phase 3 pin electrical cord connection to internal distribution board and isolation RCD’s saving on onsite installation costs
• Controlled operation prevents pump burnout when the fuel level gets too low
• Audible overfill alarms that indicate when the product is too high or too low
• Product-level temperature monitoring
• Emergency stop switches
• Pump bay fluorescent light
