Fibrelite’s commitment to quality
Fibrelite’s products are manufactured in the UK, US and Malaysia under the strictest control on raw material quality and manufacturing standards. Fibrelite ensures that our products are regularly subjected to rigorous, independent testing to comply with stringent standards for safety, product performance, quality and reliability. In addition, the following quality accreditations also mean that the quality systems of the factory where Fibrelite products are made are systematically assessed:
- ISO9001:2008 accredited
- BSI Kitemark approved products
- Kiwa approved products
- EN 124 compliant
Polished skid resistance value
Fibrelite’s covers provide an excellent anti slip/skid surface which is guaranteed for the life cycle of the cover, with a Polished Skid Resistance Value of PSRV>50 when in wet conditions, which meets the requirements of The Highways Agency (HA) 109/09, part 5.
Resin transfer moulding (RTM) manufacturing
Fibrelite’s products are manufactured in a closed mould environment combining long strand multi-directional fibreglass with a specifically formulated resin matrix. Producing an extremely durable but lightweight product, approx. 1/3rd the weight of a steel or cast iron cover.
Watertight flat sealed covers, multi-port covers and manual dip port covers:
Watertight flat sealed covers, multi-port covers and manual dip port covers
Fibrelite manufactures the largest range of glass reinforced plastic (GRP) composite manhole covers for the retail petroleum industry. The leading watertight, easy to remove, non-bolted cover on the market is available in a large selection of sizes and can be used for a wide range of applications. From tank sump access to fill sump applications, monitoring well and drawpit access, Fibrelite has it covered. All covers are lockable and available in C250 (25 tonne) and D400 (40 tonne) load ratings and are manufactured in accordance with EN 124: PAS 26.
Benefits :
- Lightweight ,
- UV resistant ,
- Round, square and rectangular (wide range of sizes),
- Anti-slip surface,
- Anti-static material,
- Non-corrosive,
- Watertight, sealed
- Non-bolted
- Ergonomic, single person removal and replacement with lifting handle
- Monolithic structure eliminates delaminating
- No permanent set
- Locks available
- Available in any RAL colour
Accessories
Fibrelite offers a range of manhole cover accessories including lifting handles (ergonomically designed to facilitate easy and safe removal and replacement of the covers); security locks that can be fitted to cover or frame; GRP skirts that can be bonded to the frame to aide with installation; metal grid safety platforms and seal replacement kits. All seals in Fibrelite watertight covers and frames can be replaced if damaged

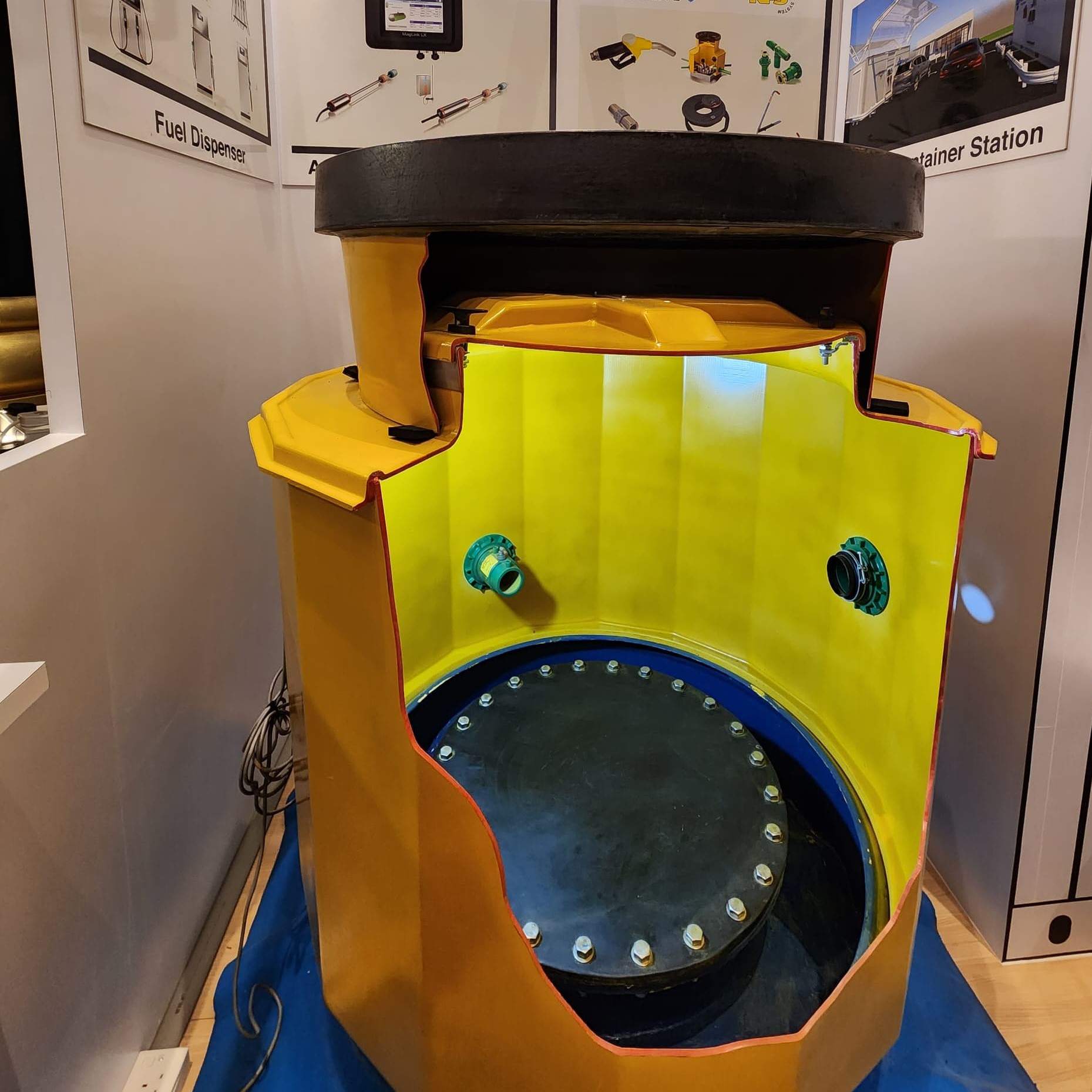

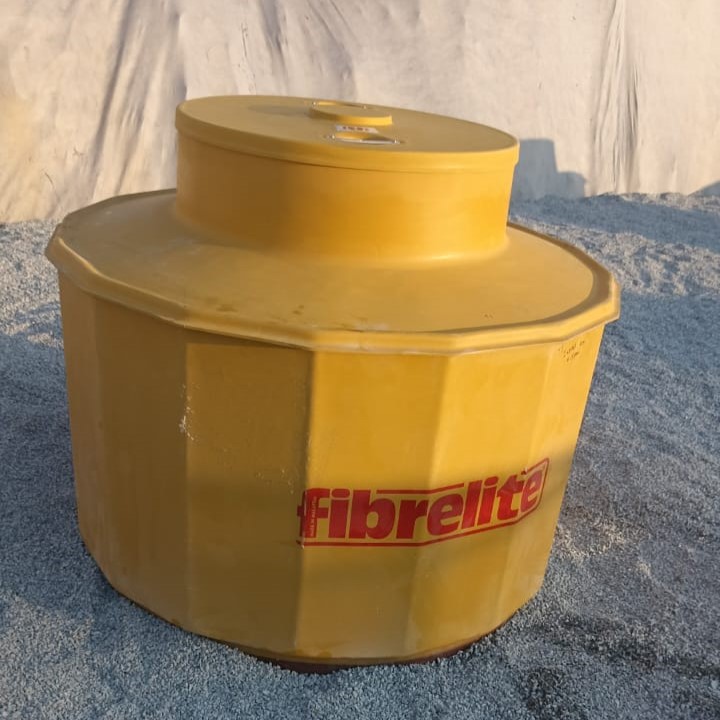

Tank Sump
Manufactured using the latest GRP technology. Fibrelite offers a range of sumps for any type of tank connection. They are all height adjustable allowing easy installation and eliminate any load transfer from the cover to the tank. Available round, square or rectangular, all sumps are supplied in multiple pieces creating the maximum space for installers to work.
Benefits:
- Watertight-structure will not deform under water pressure
- Can be buried up to 3m deep
- Anti-static surface
- Vacuum testable during and post installation
- Available for both new and retro-fit applications
- Sump extensions maintain the space inside the sump enabling easy maintenance
- Guaranteed uniform wall thickness
- Compatible with biofuels
Dispenser Sump
Manufactured using the same technology as our tank sumps, Fibrelite offers the largest range of dispenser sumps available. Each one is designed specifically for the dispenser make and model allowing easy installation and ensuring a watertight system. All dispenser sumps are supplued in two pieces creating the maximum space for installers to work.
Benefits:
- Watertight-structure will not deform under water pressure
- Anti-static surface
- Vacuum testable during and post installation
- Dispenser make and model specific designs
- Guaranteed uniform wall thickness
- Supplied with all metalwork and hardware
- Two piece design permitting maximum working space for installation
- Compatible with biofuels
Other Containment Systems
From fill sumps and transition sumps to monitoring wells, manual dip sumps, ATG’s and electrical drawpits. Manufactured using the latest GRP technology, these containment systems are all vacuum testable and offer watertight solutions. In order to reduce installation time on site, some of the Fibrelite range of containment systems can have pre-installed accessories. The below ground fill sumps can be supplied with pre-installed pipework according to the pipe specification and all grounding connections. The range of electrical drawpits can also have factory fitted entry ducts if required.
All systems are tested in-house prior to delivery ensuring peace of mind.
Benefits:
- Watertight-structure will not deform under water pressure
- Anti-static surface
- Vacuum testable during and post installation
- Guaranteed uniform wall thickness
- Pre-installed accessories available
- Compatible with biofuels
