Technical Data
- Body made of aluminum
- Tropicalised electronics

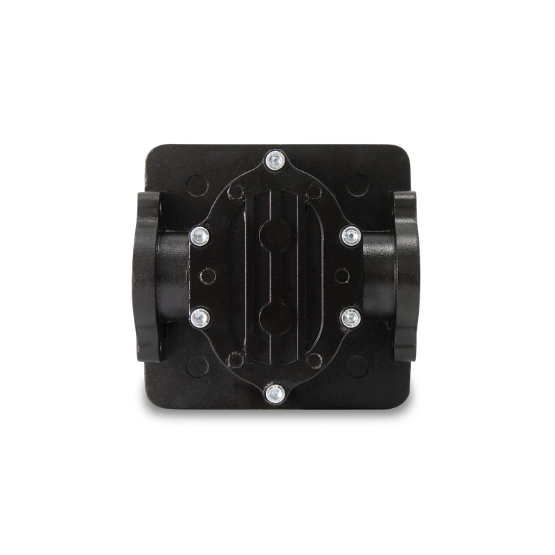

- Measurement through oval gear of high accuracy

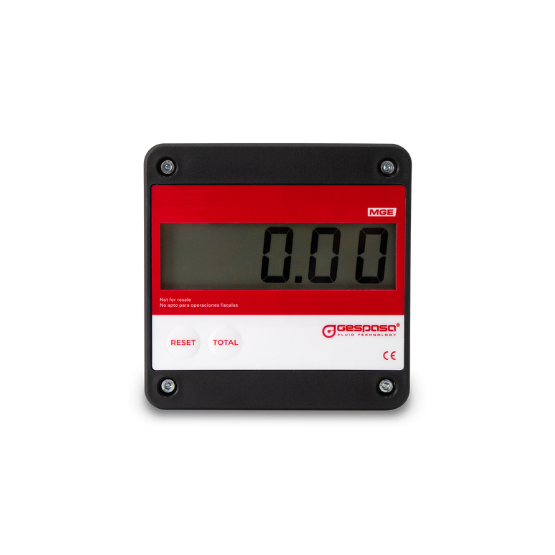

- Digital Display of liquid crystal
– 3 integers and 2 decimals: “999.99”
– 4 integers and 1 decimal: “9999.9”
– 5 integers: “99999” - Flow (approx.):
– 5-110 l/min (diesel)
– 5-80 l/min (lubricant) - Fluid density: 2-2000 cSt
- Accuracy: ±0.5%
- Maximum pressure: 55 bar
- Max. temperature: 50 ºC
- Min. temperature: -10 ºC
- Connection through F1″ thread or flange
- Button battery of long duration (approx. 4 years, according to its application)
- Low battery display
- Calibration parameters and litre totalizer saved in PERMANENT memory
Size and weight (approx.):
- Dim.: 123x68x123 mm (length x width x height)
- Net weight: 0.850 kg
- Box dim.: 147x85x140 mm (length x width x height)
- Gross weight: 0.900 kg
